Type H

£19.20

Clear
SKU: N/A Category:

Application

All items are provided as standard in White – RAL 9010. If you require a different finish, please get in touch.

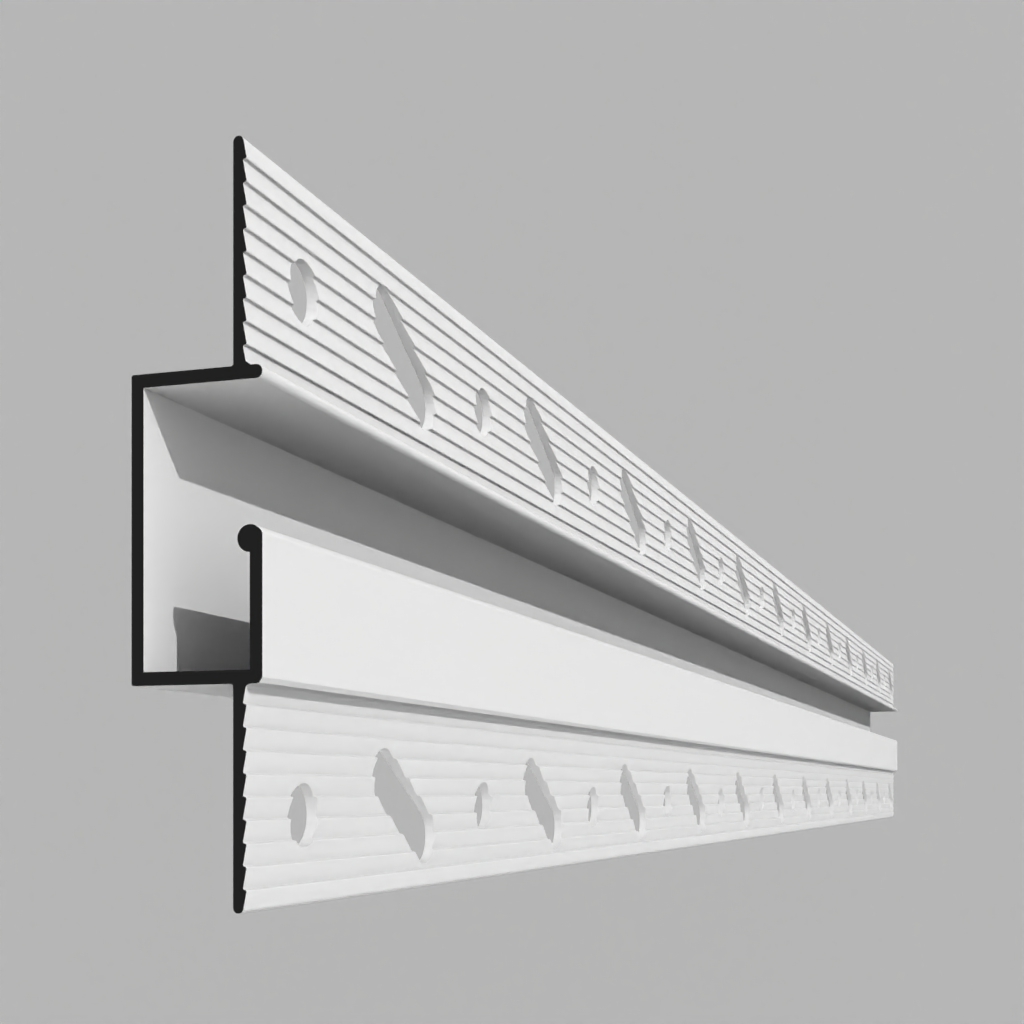

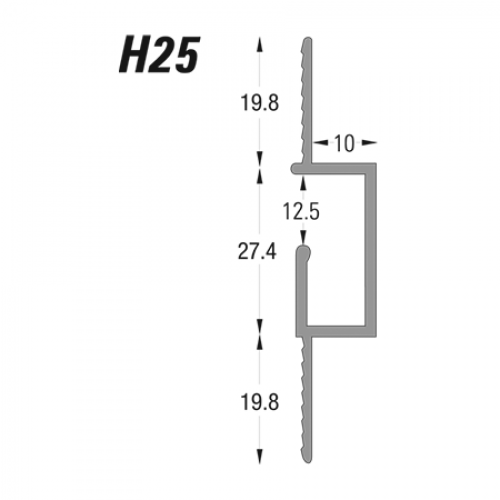

Type H trims are used to create a horizontal reveal feature in walls or upstands with a concealed hanging rail facility for pictures, charts or screens. The visible12.5mm recess fully co-ordinates with the W12 linear reveal trim. A special hanging block designed to accommodate picture hanging wire which fits within the H25 trim is available. Type H trims can be factory curved to suit both concave and convex curved walls and partitions.

Product Information

Supplied in 3000mm lengths, extruded from architectural grade aluminium alloy to BS 1474. Pre-punched with diagonal fixing slots and holes in the plastering fins suitable for fixing by dry wall screws. The standard finishes are either white polyester powder coating to RAL 9010, 20% Gloss, or unpainted for onsite painting/spraying. QIC cannot accept any responsibility for the painted finish of products supplied unpainted. Non-standard lengths, factory curving and alternative factory applied finishes are available to special order.

Delivery

We utilise either our own fleet of vehicles or external couriers for delivery to your project. We aim to deliver next day, stock prevailing, and we receive the order prior to midday. Standard delivery for stock products is £ 30.00 to UK mainland.

Packed in quantities as ordered with no bundle exceeding 25kgs. Packaging is by heavy gauge heat shrink polythene with corrugated cardboard end protection
