DGDF, Double Glazed Door Frame Kit

Call for Price


QIC EVOLUTION DG Double glazed flush look door frame has been designed to accept wood or glass door leafs in single glazed and double variants using a recessed hinge detail in either a standard height or full height requirement. The unique concealed hinge recess provides an eye pleasing transition from door leaf to frame adding to the overall systems aesthetics.

Product Information

The product is supplied in a variation of formats, ranging in extrusion only to a very specific bespoke door frame service available to order. Bespoke door frames are supplied as a complete package including all accessories and components required to complete works. Aluminium lengths are 3300mm Long, supplied in a standard Mill finish or RAL9010 white / 9006 silver / 9005 black or any other UK RAL or BS colour subject to paint set up conditions. SAA anodised finish is also available upon request. All accessories required to fit the door frame are available as standard off the shelf purchases when not using the door frame service.


We utilise either our own fleet of vehicles or external couriers for delivery to your project. We aim to deliver next day, stock prevailing, and we receive the order prior to midday. Standard delivery for stock products is £ 30.00 to UK mainland.

Packed in quantities as ordered with no bundle exceeding 25kgs. Packaging is by heavy gauge heat shrink polythene with corrugated cardboard end protection

Technical Details

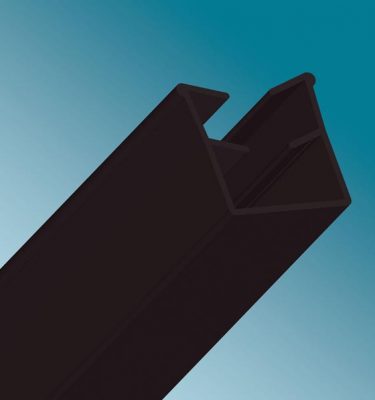

QIC EVOLUTION DG – Double glazed door frame is part of an acoustic tested system providing a 46dB (Rw) when being used in conjunction with the head ( DG03 ) and base tracks ( DG01 & SG02 ) plus all the relevant component gaskets (SG03-PVC) glass clip in, (SG01-4/5BG) track base gasket and (SGDF-BLKG) door rebate gasket. Glass scenarios are 12mm toughened & 12.8mm laminated & 10.8 & 12.8mm with glass dry joints. See test evidence for further details.
The door leaf acoustics is dependable on supplier and cannot be used as evidence without a re-test in the system.
The door frame can be used with QIC traditional EV range of partitioning profiles but a test certificate cannot be offered in these circumstances. However these profiles are sufficient when a non-acoustic application is required. Fitting of doors securely require all cleats and screw points fixed firmly on the base of the frames and mitred corners through the top of the head track. Glass insulation requires abutment gaskets to be lubricated prior to fitting panels, (particularly on 12/12.8mm glasses as these are a tight fit).
This system is currently not fire tested.

Compatible with the following products:

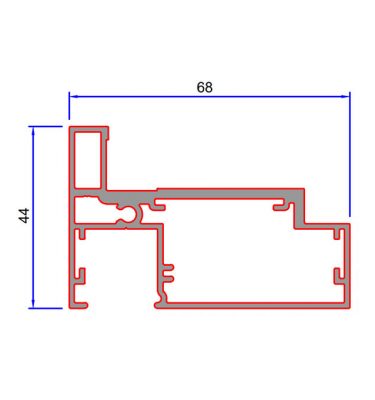

Technical Drawing

Coming Soon.
