SG03 Head Abutment Track

Call for Price: +44 (0) 1280 818 950

Clear
View Product Datasheet
SKU: N/A Categories: ,

Application

QIC EVOLUTION SG single glazed flush look head / abutment track has been designed to sleekly compliment the EVOLUTION partition system. Designed with single to double transition in mind, the head / abutment height marries into the flush look on the single glaze track alongside, single glaze and double glaze door frames from both inside and out-side the office environment, this gives a flush wall of glass look at the head.

Product Information

The product is supplied in extrusion length and comes complete with a choice of either clear or black PVC gasket clip in profiles. Lengths as standard are 3000mm, supplied in a standard Mill finish or RAL9010 white / 9006 silver / 9005 black or any other UK RAL or BS colour subject to paint set up conditions, SAA anodised finish is also available upon request.

Delivery

We utilise either our own fleet of vehicles or external couriers for delivery to your project. We aim to deliver next day, stock prevailing, and we receive the order prior to midday. Standard delivery for stock products is £ 30.00 to UK mainland.

Packed in quantities as ordered with no bundle exceeding 25kgs. Packaging is by heavy gauge heat shrink polythene with corrugated cardboard end protection

Technical Details

QIC EVOLUTION SG – Single glazed flush look head / abutment track is part of an acoustic tested system providing a upto 38dB (Rw) when being used in conjunction with the stated door frame ( SGDF ) and base tracks ( SG01 & SG02 ) plus all the relevant component gaskets (SG03-PVC) glass clip in, (SG01-4/5BG) track base gasket and (SGDF-BLKG) door rebate gasket parts. Glass scenarios are 10 & 12mm toughened & 10.8mm laminated & 12.8mm with glass dry joints. See test evidence for more details.
QIC EVOLUTION SG – Single glaze flush look head / abutment track, has x3 recess areas for cleat installations in straight runs or when corner/mitre and 135 degree details are to be used.
Fitting of the track securely requires all cleats to be ixed firmly to give a seamless joint between runs of track work, Glass insulation requires head / abutment gaskets to be lubricated prior to fitting panels, (particularly on 12/12.8mm glass as these are a tighter fit).
This system is currently not fire rated.

Compatible with the following products:

Technical Drawing

Coming Soon.

Specification

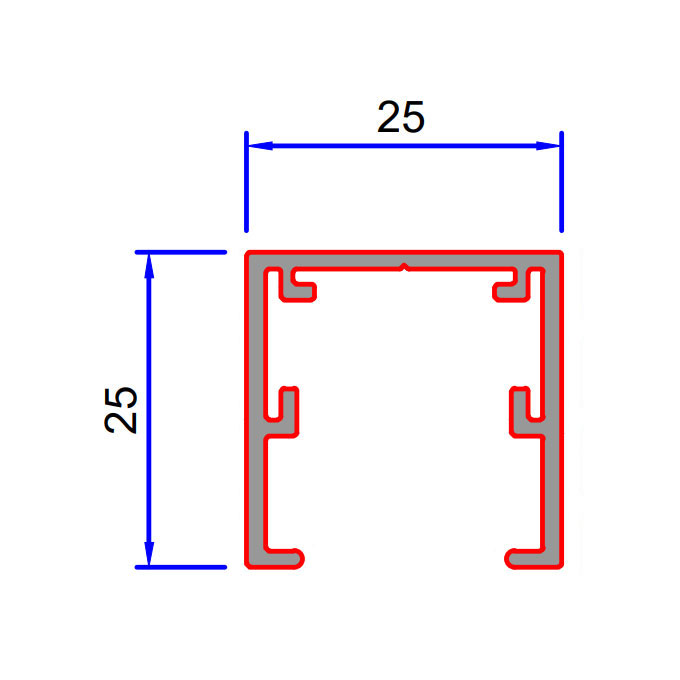

Dimensions 25 x 25 mm
Product Variations

SG03

Colour

Mill ( Aluminium Finish Only ), White RAL9010, Silver RAL9006, Black RAL9005, Grey RAL7016
